Wanted - 2021 Shop Manual

[INTHEWIND]

I loaded a photo of the Service Manual 2021-2023 three times. This server doesn't like it.

Congrats.
You are going to be a wealth of knowledge for this forum, if you dont mind.



[kaczor]

Hi! I live in EU (Poland) and I'm desperately looking for a wiring diagram for my XD 2022. When I've found out it can be just bought I decided to take a risk (it is not clear how much EU version differs from USA) and order Workshop Manual from Helminc. I've typed my addres and calculated shipping...



...and it is INSANE. Is there anyone who know if the manual can be bought somewhere in EU or ANYWHERE with shipping on some reasonable level? Or if not, is there anyone who could share a photo of a wiring diagram? I would like to pay for it... but I can't swallow the shipping price tag. Well, no way



[670cc]

Hi! I live in EU (Poland) and I'm desperately looking for a wiring diagram for my XD 2022. When I've found out it can be just bought I decided to take a risk (it is not clear how much EU version differs from USA) and order Workshop Manual from Helminc. I've typed my addres and calculated shipping...

View attachment 52096

...and it is INSANE. Is there anyone who know if the manual can be bought somewhere in EU or ANYWHERE with shipping on some reasonable level? Or if not, is there anyone who could share a photo of a wiring diagram? I would like to pay for it... but I can't swallow the shipping price tag. Well, no way

I’m curious. If you ask a Honda dealer in the EU, can they source the official Honda manual for you, or do they suggest you order it yourself?

The wiring diagram for USA vs Poland versions may differ slightly, perhaps in minor details regarding lighting.



[kaczor]

I’m curious. If you ask a Honda dealer in the EU

This is a very good question. I was thinking about that yesterday and the only possible way to find out is to make a call, which I'm going to do right now



[kaczor]

So it is totally NOT possible to buy workshop manual in Honda dealer. Or at least in Poland One of the dealers however informed me there is a webpage, where it is possible to access all diagrams, workshop manuals, etc. MARIS Pay and Go: https://www.techinfo.honda-eu.com. I've registered, paid and it just does not work - a server error is just displayed. I've written for a refund

So is there ANY chance somebody can share a photo of the diagram? Or at least instrument cluster pinout I'm installing aftermarket fog lights and I would like to use built-in fog light indicator LED, I'm wondering if it is just light up by a wire...



[Itdoesn'taddup]

Is this what you're looking for? 2021-2023 NC750X Service Manual



[kaczor]

YES!!! This is exactly what I was looking for Thank you so much!!! Could I ask one more thing? Where this guy ends (Br/W)?



[lootzyan]

Is this what you're looking for? 2021-2023 NC750X Service Manual

Is this wiring diagram fragment actually from the 2021-2023 NC750X? It doesn't make much sense to me. I checked the Owner's Manuals for the 2021-2023 NC750 models and none of them show information on the combination meter about Grip Heater, Front Fog, Speed Pulse, etc. And what is Cell Up, Cell Down?



[kaczor]

In fact it makes sense. Front fog light is on the left and grip heater is displayed on the right of the clock, here:


I can make a photo of mine, fog light does not work yet, but heaters are showing grip symbol and the heating level (from 1 to 5).

Pulse signal goes from ECM and is probably used to calculate the speed, CELL UP and CELL DOWN are tied up to UP/DOWN selection switch.



[kaczor]

Just took a photo, both visible:



[lootzyan]

Oh well. It looks like (again) Honda cares more about EU business than US. The US versions of the Owner's Manual do not show these options. If you are going to try to buy a Service Manual in the US make sure the wiring diagram includes these connections. (e.g. there is no info about HISS).



[kaczor]

Wait wait, both Fog Light control and grip heater display are NOT visible in EU owner manual, I was also searching for it in mine (it is in polish). They are simply not there

Just opened my manual - HISS is also not mentioned



[lootzyan]

Did you buy the model already equipped with fog lights and grip heater? I'm just asking out of curiosity, but it won't change your situation.



[kaczor]

I've bought without, but installed OEM grips in my dealer service center. Because OEM fog lights needs to be installed including OEM crash bars (which are only silver and ugly), I'm installing aftermarket ones (Givi). And because I would like to make the installation as close to factory as possible, I'm using genuine switch and just realised there is a control light on dashboard which I would like also to utilize

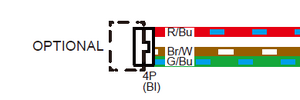

By the way - I've just FOUND wiring diagram on some RU forum, so I can confirm my suspicion. The brown wire from the FR FOG light on dashboard goes to OPTIONAL connector, where a USB/Fog Light sub harness needs to be plugged in. So just in case for anybody looking for this info in the future, it goes here:



Thank you very much for your help, I really really appreciate it!
